ElBanquos_1D_pong

A 1D Pong game implemented with an arduinon and neopixles

---

Project maintained by mattywausb Hosted on GitHub Pages — Theme by mattgraham

back to readme ___

1D Pong game MK1

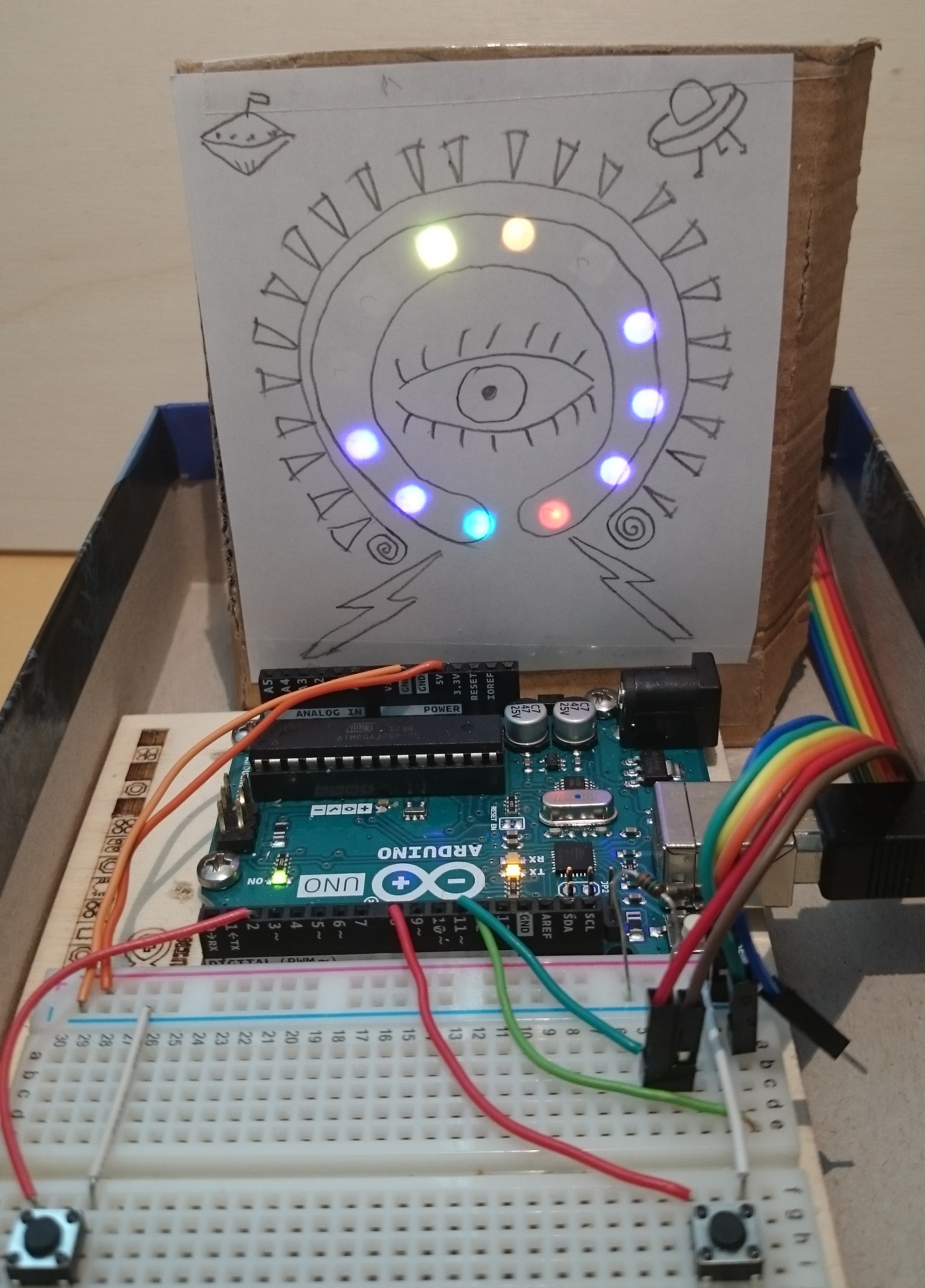

Demo

Components

• Arduino Uno
• small breadboard (the one from the starter kit)
• 2 Buttons
• Neopixel Ring with 12 pixels
• Resistor 220 Ohm
• Speaker
• Bunch of jumper wires
• Cardboard, Paper

Tools

• Arduino development platform
• cutter
• pen or pencil (for decorating)

Wiring

See fritzing file in the reporisotry for better detail.

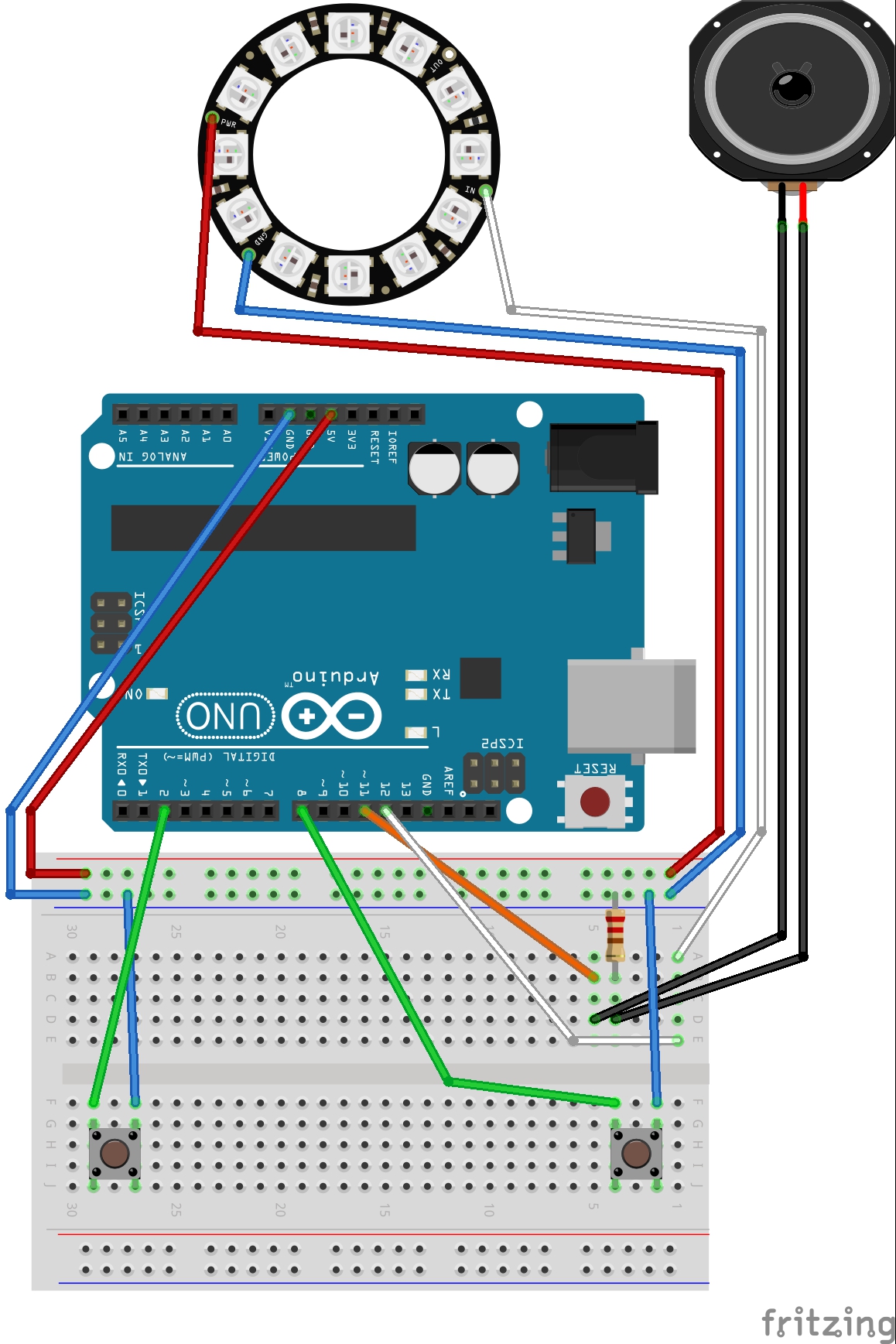

Breadboard setup

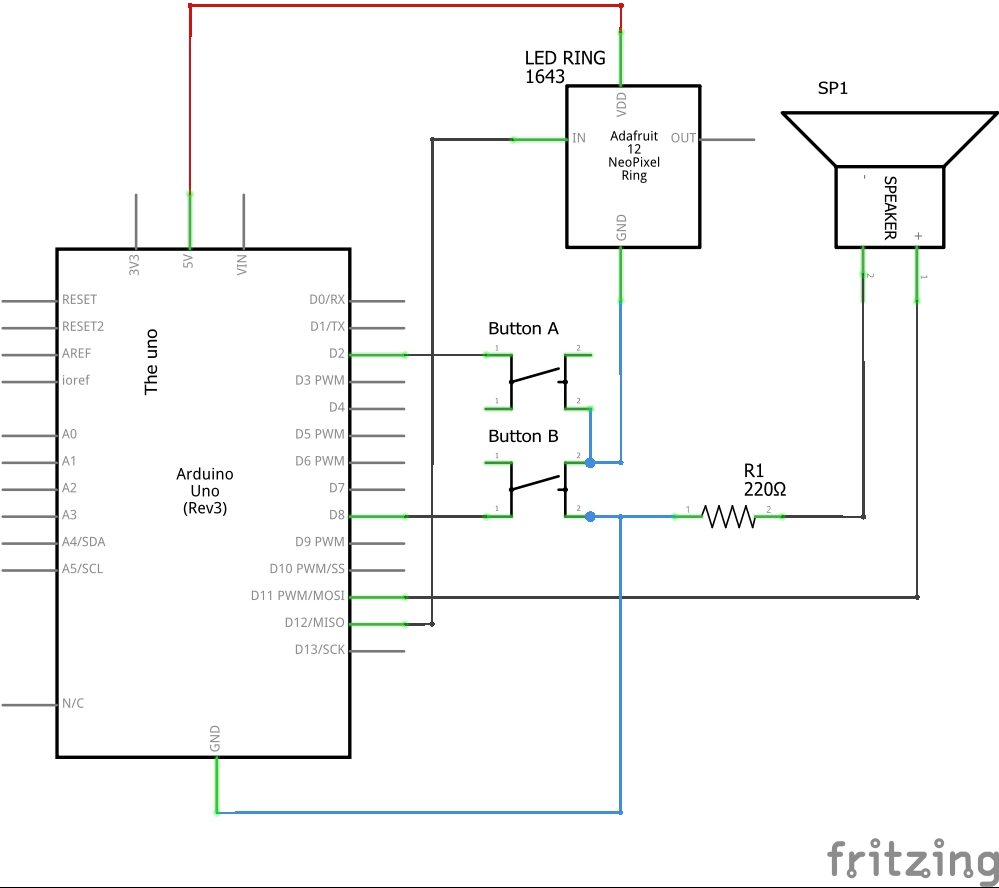

Circuit diagram
